Face-bow transfer

Face-bow transfer - anatomical

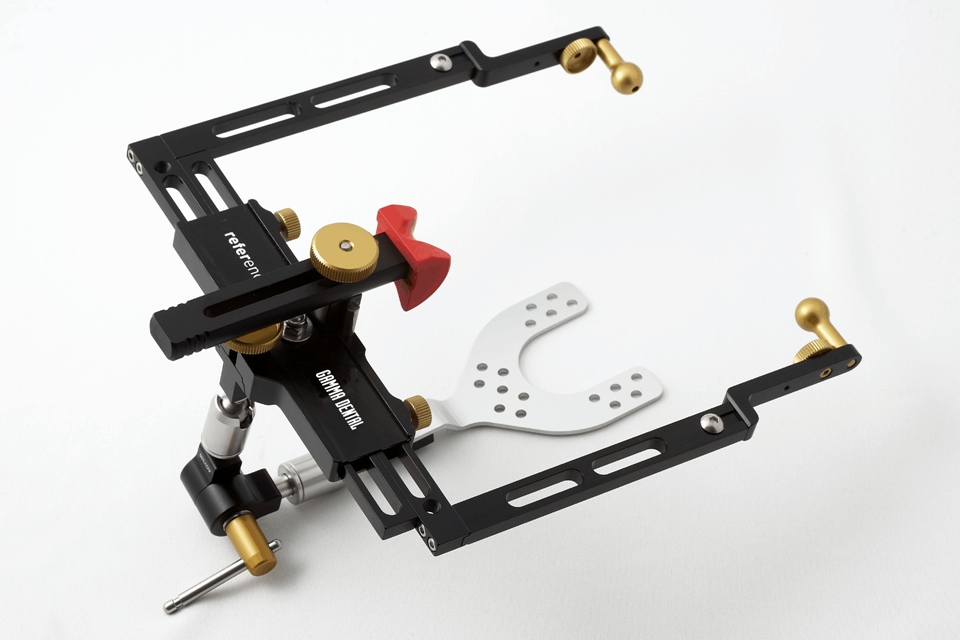

Anatomic parallel face-bow with 3D joint support for the purpose of model transfer into the articulator in cranial jaw relation. The face-bow impresses with its easy handling and excellent stability. Relates to Frankfurt-Horizontal plane.

Easy handling using a 3D joint support.

Depending on the requirement, possibility of direct but also indirect transfer into the articulator.

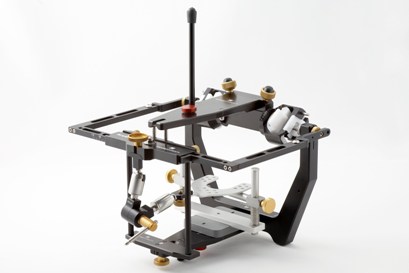

Transfer stand AB

Transfer stand AB-receives the face-bow registration from the AB bow. The Reference distance block plus mounting plate serve as transfer table.

Transfer stand AB 2

Transfer stand AB 2 for direct transfer of upper jaw model in articulator without Reference AB bow.

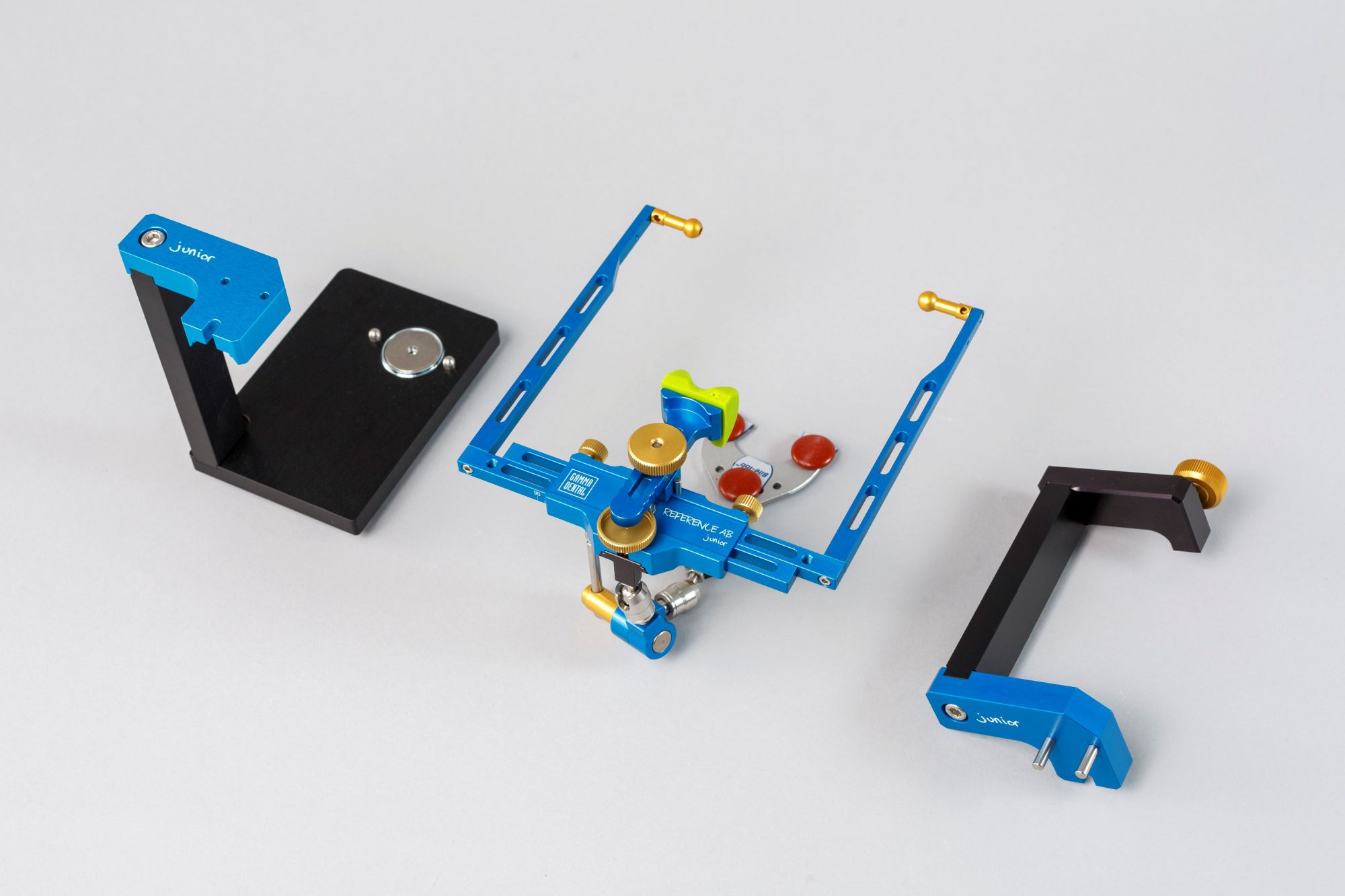

Face-bow transfer - junior

  • Patient group 6 - 12 years
  • Children-friendly design
  • Easy to handle
  • Reduced weight by 40%
  • Comfortable glabella support with soft cushion
  • Direct articulation with transfer-stand AB-2 Junior

Accessory set

If the AO plane is left, an accessory set is available with adjustable orbital pointer. However, in this case, mounting is then only possible in the upper jaw transfer stand. Sterilizable, detachable ear-plugs.

For data recording with CADIAX® compact, the AB-Bow can be upgraded with easy-to-use accessories.

The advantages are obvious: one bow, two applications.

Face-bow transfer exact hinge axis – kinematic

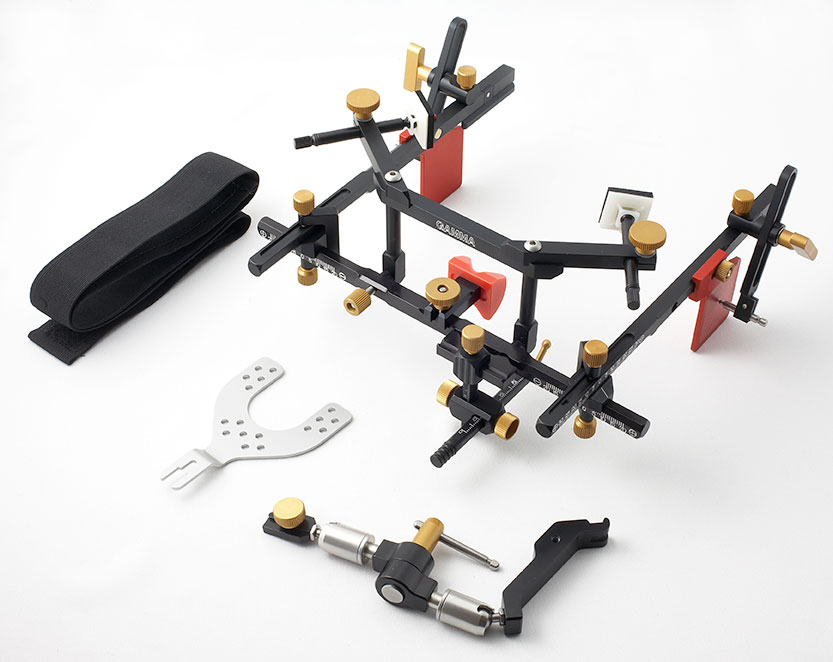

The Condylograph ‘classic'

is a highly precise measuring device for the functional diagnosis-working dental practice.

The most important components of the set are an upper, most pelvic facial face bow, a lower mandibular face bow, and a transfer stand for the OK transmission into the articulator.

The upper face bow is stabilized by a functional 3-point support technique on the patient head. The side arms rest on the ear saddles without force. The face bow is fixed by a retention strap.

The mechanical connection of the front and side parts ensure an exact alignment at the 90° angle. Thus, the flags are ideally suited for receiving writing flags (mechanical or electronic). The individual orbital pointer allows the assignment of any facial plane.

The easily-designed micro-adjustable mandibular face-bow allows the precise localization and adjustment of the individual kinematic hinge axis of the patient.

From the anatomical axis, the system can be equipped with both mechanical and electronic sensors (CADIAX compact or CADIAX 4).

The articulator model transfer of the upper jaw model takes place according to the exact axis and individually selected facial plane by means of the upper face bow and the transfer stand. In addition to the Reference articulators, various commercial split systems or other articulator systems can be installed.

Condylograph ‘comfort '

The Condylograph 'comfort' is a design variant of the 'classic' version of the device. The comfort bow has been specially developed for lightness and wearing comfort.

It impresses with its modern design, easy application with good stability at the patient head.

All functional attachments can be connected to the bow. The recording with the CADIAX systems as well as the articulator transfer according to the individual facial plane are also possible with the Condylograph set comfort.
